Introduction: Beneath the Cold Waves

Two hundred meters beneath the storm-tossed waters of the North Sea, a remotely operated vehicle (ROV) clicks into position, inspecting the anchor points of a subsea oil manifold. The environment is extreme—salt-laden currents, freezing temperatures, crushing hydrostatic pressure, and corrosive hydrogen sulfide gas leaking from deep within the Earth's crust. And yet, gleaming intact among the barnacle-scarred steel is a set of Monel 400 rods—still structurally sound after five years of immersion.

In offshore engineering, failure is never just inconvenient—it's catastrophic. And while most attention goes to high-tech control systems and sophisticated composites, the quiet workhorse behind many successful subsea systems is the humble but heroic Monel 400 rod.

The Harsh Truth About Deepwater Corrosion

Offshore environments represent the worst-case scenario for any engineering material:

• Saltwater exposure accelerates general and pitting corrosion.

• Hydrostatic pressure can exceed 30 MPa (4,300 psi) at 3,000 meters.

• Hydrogen sulfide (H₂S) attacks metals, leading to sulfide stress cracking.

• Microbial-induced corrosion (MIC) from sulfate-reducing bacteria can cause localized electrochemical destruction.

These threats don't just degrade surfaces—they break seals, crack rods, jam valve stems, and compromise anchoring systems. Standard stainless steels like 316L or duplex grades often require coating, cladding, or cathodic protection to survive.

But Monel 400? It doesn't flinch.

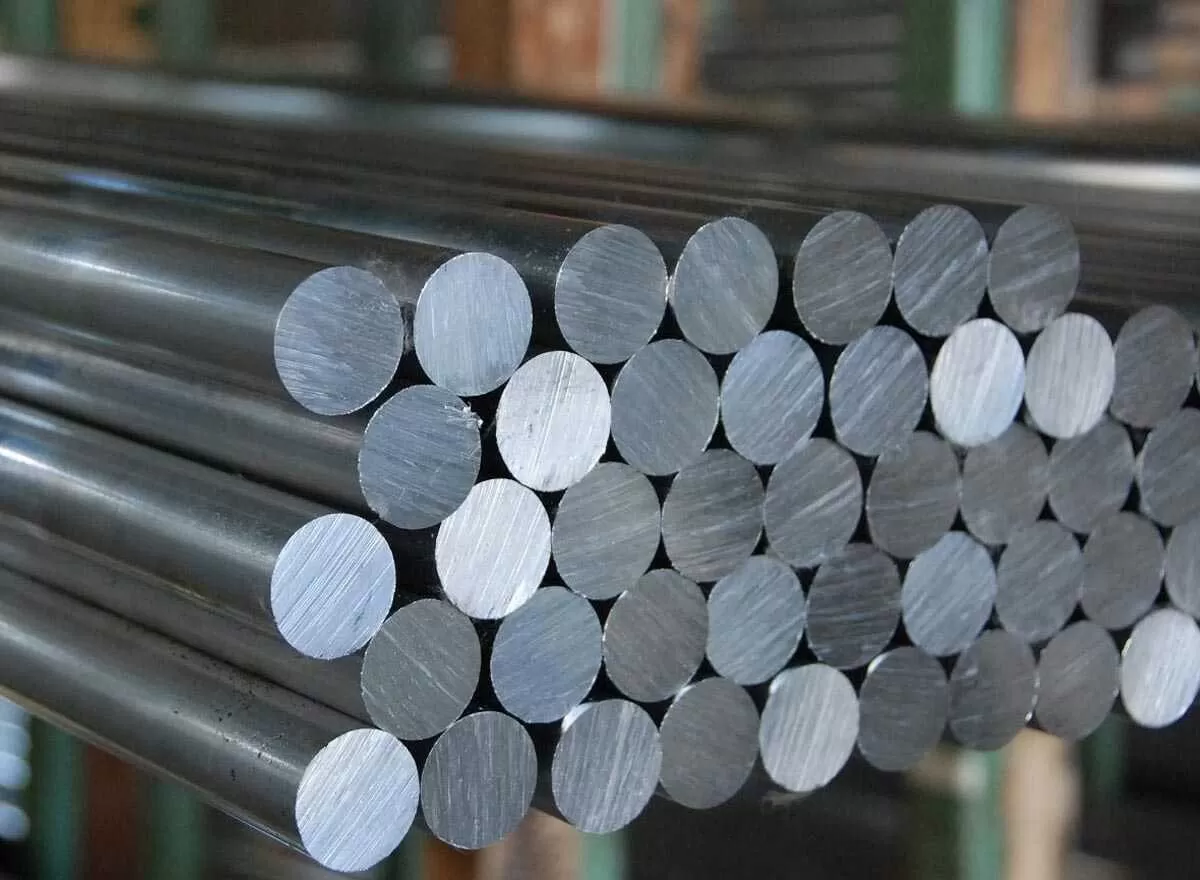

Meet Monel 400: A Metal Born for the Ocean

Monel 400 (UNS N04400) is a solid-solution nickel-copper alloy (approximately 67% Ni and 30% Cu) that originated in the early 20th century from by-products of nickel refining. But this is no relic—it’s a legend in marine engineering.

Core Strengths:

• Natural resistance to seawater corrosion—including stagnant conditions where chlorides concentrate.

• Immunity to H₂S and hydrofluoric acid attack—perfect for sour service wells.

• Excellent ductility and impact strength—even at cryogenic temperatures.

Because of its single-phase (FCC) structure, Monel 400 doesn't suffer from intergranular attack or selective phase corrosion. It remains uniform, tough, and stable—whether in warm surface brine or icy deep-sea currents.

Case Study: North Sea Subsea Valve Assemblies

In 2017, an operator in the Norwegian sector of the North Sea replaced valve stem guide rods and locking pins in a deepwater manifold with Monel 400 equivalents after repeated failures with coated duplex stainless.

Test Conditions:

• Depth: 900 meters

• Temp: 4°C

• Salinity: ~3.5%

• Pressure: 9 MPa

• H₂S concentration: 15 ppm

5-Year Follow-Up:

• Zero pitting or crevice corrosion observed on Monel 400 rods

• Tensile strength retained >95% based on NDT and removed sample testing

• Stainless control rods showed delamination of coatings and microcracks

A senior subsea inspector commented:

“If the manifold were rebuilt from scratch, we’d spec Monel across the board.”

Fabrication and Mechanical Behavior

Impact Performance:

Monel 400 remains tough even at -100°C. Unlike brittle high-strength steels, it absorbs impact loads without cracking—ideal for subsea anchors and locking systems that experience shock during installation.

Work Hardening:

It does present challenges:

• Machining Monel 400 leads to rapid tool wear.

• Requires rigid fixturing, low-speed cutting, and high feed pressure.

• Post-fabrication stress-relieving is recommended for complex parts.

Despite this, it welds well using gas tungsten arc or shielded metal arc methods—with low risk of weld decay or HAZ embrittlement.

How It Compares to Others

In many systems, Monel 400 hits the sweet spot between corrosion resistance, strength, and manageable cost—especially where titanium is overkill or Inconel is over-budget.

Economic and Safety Payoff

While a Monel 400 rod may cost 2–3× more than 316 stainless steel, its failure rate is 10× lower in sour or saltwater service. Here’s a breakdown from a 2021 asset lifecycle study:

• Component life extension: From 18 months to >5 years

• Inspection interval increase: From annual to once every 3–4 years

• Downtime avoidance (per event): $25,000–50,000 per manifold

• ROI breakeven: Achieved in 2.2 years

Additionally, fewer corrosion incidents reduce diver/ROV interventions—lowering risk and improving safety metrics.

Looking Ahead: Monel’s Modern Frontier

The demand for corrosion-resistant, pressure-tolerant materials is growing in new sectors:

• Floating wind platforms: Require deep-sea anchoring rods and tensioners with saltwater resilience.

• Subsea CO₂ pipelines: Carbon capture infrastructure will use acid-exposed components below sea level.

• Hydrogen infrastructure: Monel 400's immunity to hydrogen embrittlement positions it well for low-pressure fittings and purge rods.

Engineers are now testing Monel 400 rods in hybrid mooring systems and in-line chemical injection lines—areas where reliability is mission-critical.

Conclusion: Silent Strength Under Pressure

In a world of buzzwords and breakthrough materials, Monel 400 may not turn heads. But its track record under the ocean speaks for itself. For every anchor that holds, every valve that seals, and every pipe that resists attack at depth, there is likely a rod of Monel 400 doing its job quietly, tirelessly, and without fail.

When engineering meets the sea, there is no room for second chances—only alloys that deliver. And Monel 400 delivers.
